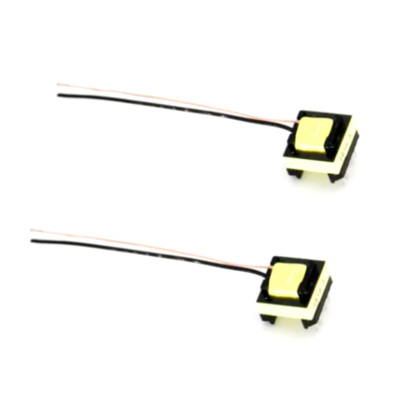

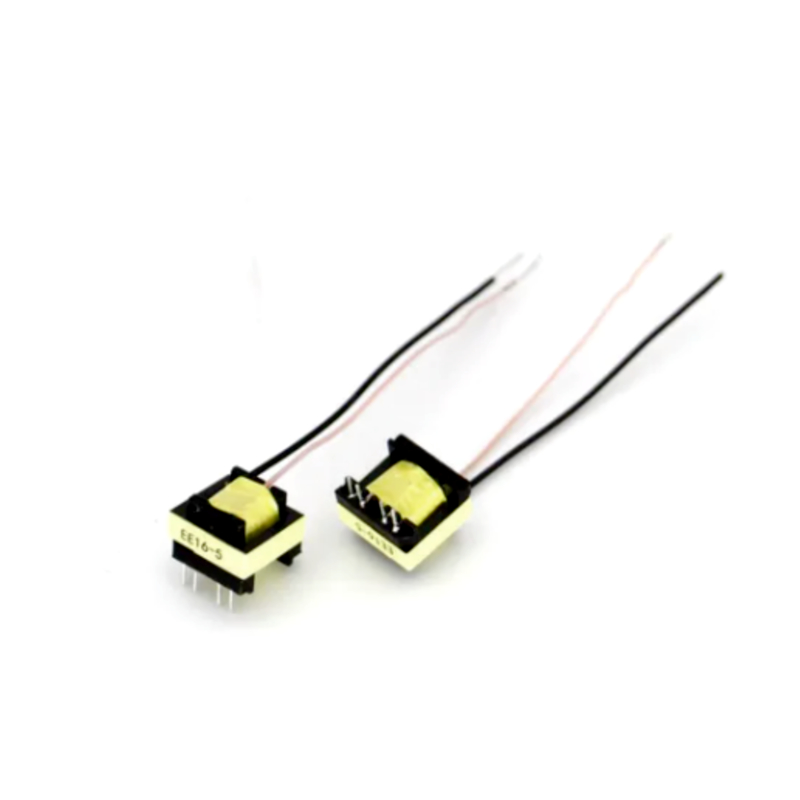

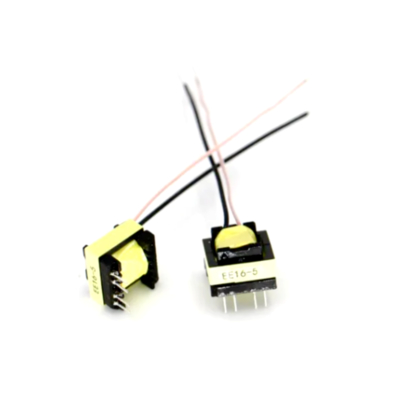

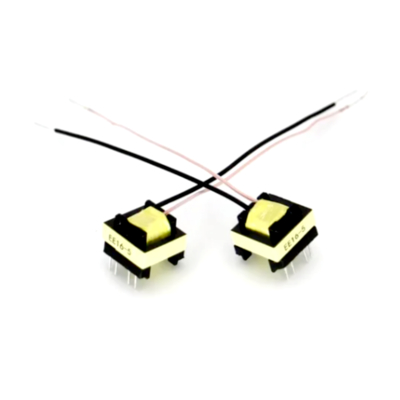

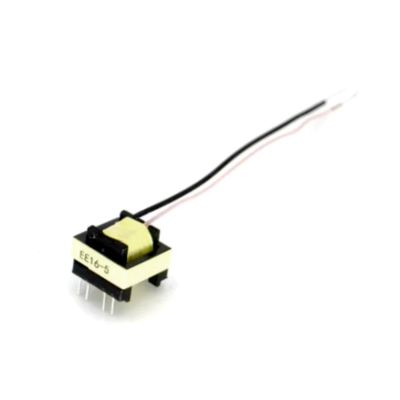

Horizontale Ee16 Hoogfrequente Transformator met Fly-Line

Horizontale Ee16 Hoogfrequente Transformator met Fly-Line

    • Horizontal Ee16 High Frequency Transformer with Fly-Line
    • Horizontal Ee16 High Frequency Transformer with Fly-Line
    • Horizontal Ee16 High Frequency Transformer with Fly-Line
    • Horizontal Ee16 High Frequency Transformer with Fly-Line
    • Horizontal Ee16 High Frequency Transformer with Fly-Line
  • Horizontal Ee16 High Frequency Transformer with Fly-Line

    Productdetails:

    Plaats van herkomst: China
    Merknaam: IKP
    Certificering: CE/UL/REACH/ROHS
    Modelnummer: IKP-LF-EE165-3

    Betalen & Verzenden Algemene voorwaarden:

    Min. bestelaantal: 1000
    Prijs: 0.15-0.18
    Verpakking Details: karton
    Levertijd: 10-15 dagen
    Betalingscondities: L/C, T/T
    Levering vermogen: 100,000/week
    Contact nu
    Gedetailleerde productomschrijving

    Basis informatie.

    Model nr.
    IKP-LF-EE165-3
    Kern
    Core-type transformer
    Koelmethode
    Dry-type transformer.
    Typ van de wikkeling
    Gescheiden wikkeltransformator
    Certificering
    ISO9001, Ce/SGS/BV/RoHS/Reach
    Gebruik
    Stroomtransformer
    Frequentiekarakteristieken
    Hoge frequentie
    Vorm van de kern
    EE
    Merken
    Ikp
    Transportpakket
    Verpakking
    Specificatie
    EE165
    Handelsmerk
    IKP-ELEC
    Oorsprong
    China
    HS-code
    85043190
    Productiecapaciteit
    100000 stuks/dag

    Productbeschrijving

    Horizontale Ee16 Hoogfrequente Transformator met Fly-Line

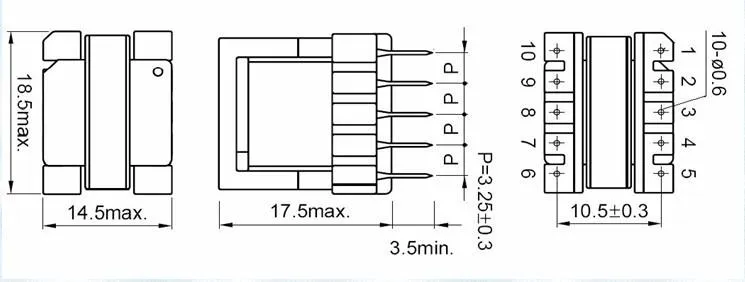

    Fysieke en elektrische prestatieparameters:
    Type Vormstructuur Afmeting Vermogensbereik
    Een B. C D E F
    EE10 horizontaal 12.0Max 10.8±0.5 12.4±0.5 2.5±0.2 2.5±0.3 10.5±0.5 Maximaal 4 W
    EE13 15.0Max 13.5±0.5 13.85±0.5 2.5±0.2 2.5±0.3 10.2±0.5 Maximaal 6W
    EE16 17.5 Max. 15.0±0.5 13.6±0.5 3.5±0.2 3.0±0.3 11.0±0.5 Maximaal 10 W
    EE19 22.0Max 112.4±0.5 17.4±0.5 4.0±0.2 3.0±0.3 12.5±0.5 Maximaal 15 W
    EE22 24.0Max 13.0±0.5 15.7±0.5 4.0±0.2 4.8±0.3 13.0±0.5 Maximaal 20 W
    EE25 26.5 Max. 17.3±0.5 19.4±0.5 4.0±0.2 5.0±0.3 14.0±0.5 Maximaal 25 W
    EE30 32.0Max 22.0±0.5 32.0Max 4.0±0.2 5.0±0.3 25.0±0.5 Maximaal 145 W
    EE40 34.0Max 28.6±0.5 35.0Max 4.0±0.2 5.0±0.3 25.8±0.5 Maximaal 350 W
    EE42 42.0Max 39.1±0.5 45.0Max 4.0±0.2 5.0±0.3 37.8±0.5 Maximaal 450 W
    EE55 58.0Max 56.0±0.5 58.0Max 4.0±0.2 5.0±0.3 40.0±0.5 Maximaal 500 W
    Type Vormstructuur Afmeting Vermogensbereik
    Een B. C D E F
    EE8.3 Verticaal 10.0Max 9.5 Max. 8.0±0.5 2.5±0.2 3.3±0.3 5.8±0.5 Maximaal 3 W
    EE10 12.0Max 13.0Max 10.4±0.5 2.5±0.2 2.5±0.3 5.8±0.5 Maximaal 4 W
    EE13 15.0Max 14.0Max 12.2±0.5 2.5±0.2 2.5±0.3 5.8±0.5 Maximaal 6W
    EE16 17.5 Max. 15.0Max 14.4±0.5 3.5±0.2 3.8±0.3 5.8±0.5 Maximaal 10 W
    EE19 22.0Max 19.0Max 15.9±0.5 4.0±0.2 4.0±0.3 5.8±0.5 Maximaal 15 W
    EE22 24.0Max 20.0Max 16.5±0.5 4.0±0.2 4.0±0.3 5.8±0.5 Maximaal 20 W
    EE25 26.5 Max. 22.0Max 17.2±0.5 4.0±0.2 5.0±0.3 5.8±0.5 Maximaal 25 W
    EE28 30.0Max 22.0Max 21.8±0.5 4.0±0.2 5.0±0.3 5.8±0.5 Maximaal 50 W
    EE30 32.0Max 30.0Max 28.0±0.5 4.0±0.2 5.0±0.3 5.8±0.5 Maximaal 145 W
    EE35 37.0Max 30.0Max 25.6±0.5 4.0±0.2 5.0±0.3 5.8±0.5 Maximaal 350 W
    EE40 42.0Max 33.0Max 27.9±0.5 4.0±0.2 5.0±0.3 5.8±0.5 Maximaal 450 W
    EE42 46.5 Max. 43.0Max 37.4±0.5 4.0±0.2 5.0±0.3 5.8±0.5 Maximaal 500 W
    EE55 57.0Max 58.0Max 42.0±0.5 4.0±0.2 5.0±0.3 5.8±0.5 650 W max

    Horizontale Ee16 Hoogfrequente Transformator met Fly-Line
    Horizontale Ee16 Hoogfrequente Transformator met Fly-Line
    Horizontale Ee16 Hoogfrequente Transformator met Fly-Line
    Horizontale Ee16 Hoogfrequente Transformator met Fly-Line
    Horizontale Ee16 Hoogfrequente Transformator met Fly-Line
    Horizontale Ee16 Hoogfrequente Transformator met Fly-Line
