Thuis ProductenHoogfrequente transformatoren

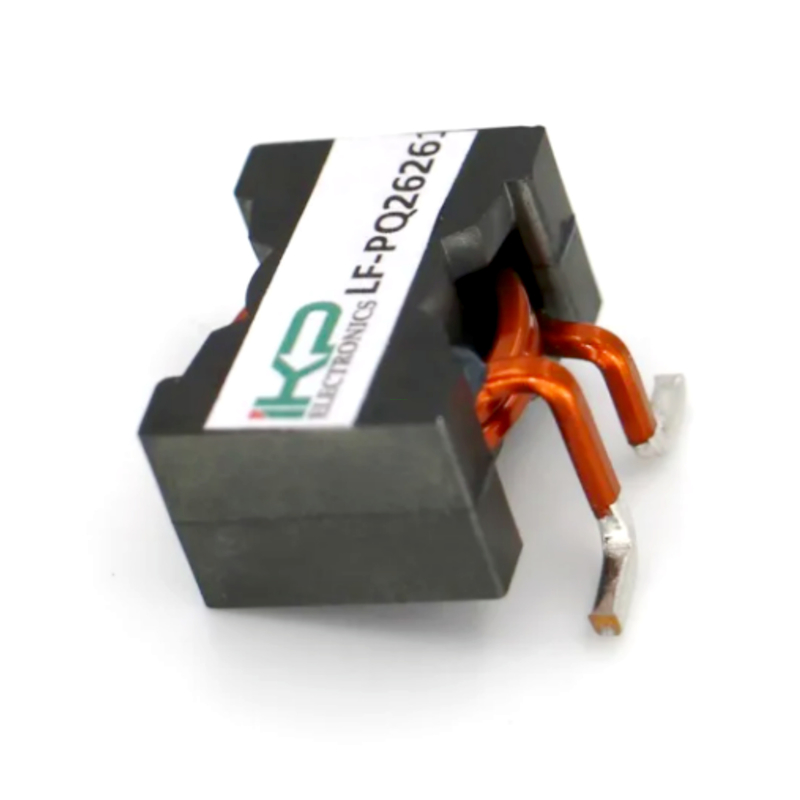

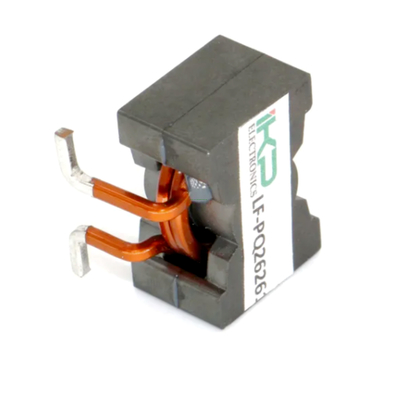

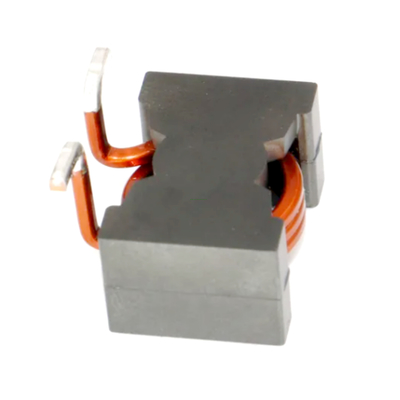

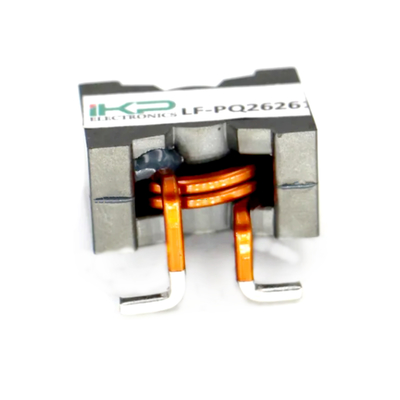

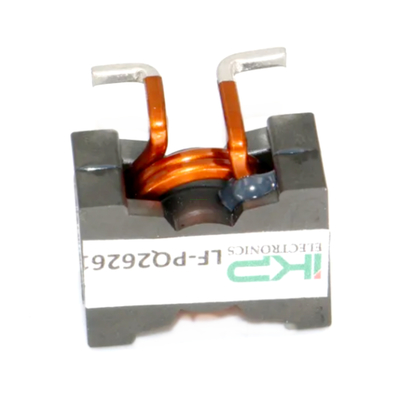

Op maat gemaakte Pq Core High Frequency Transformer met platte draad

Op maat gemaakte Pq Core High Frequency Transformer met platte draad

    • Customized Pq Core High Frequency Transformer with Flat Wire
    • Customized Pq Core High Frequency Transformer with Flat Wire
    • Customized Pq Core High Frequency Transformer with Flat Wire
    • Customized Pq Core High Frequency Transformer with Flat Wire
    • Customized Pq Core High Frequency Transformer with Flat Wire
  • Customized Pq Core High Frequency Transformer with Flat Wire

    Productdetails:

    Plaats van herkomst: China
    Merknaam: IKP
    Certificering: CE/UL/REACH/ROHS
    Modelnummer: IKP-LFPQ2614

    Betalen & Verzenden Algemene voorwaarden:

    Min. bestelaantal: 1000
    Prijs: 0.50-0.55
    Verpakking Details: karton
    Levertijd: 10-15 dagen
    Betalingscondities: L/C, T/T
    Levering vermogen: 100,000/week
    Contact nu
    Gedetailleerde productomschrijving

    Basisinfo.

    Modelnummer
    IKP-LFPQ2614
    Transportpakket
    Karton/Buis
    Specificatie
    Rohs, ISO9001
    Handelsmerk
    IKP
    Herkomst
    Hefei, Anhui
    HS-code
    85045000
    Productiecapaciteit
    50.000 STUKS/Week

    Productomschrijving



    Op maat gemaakte Pq Core High Frequency Transformer met platte draad

    Elektrische kenmerken (temperatuur: 25 ±50cm, RV: 65±1RV)
    1) Inductie (bij 10 kHz 0,05 V): L2-7 = L3-6 = 6,8 mH +50%/-30%
    2) Weerstand: DCR2-7 = DCR3-6=250 mΩ maximum
    3) Hi-pot: N1 naar N2: 1500V AC, 3mA, 60s

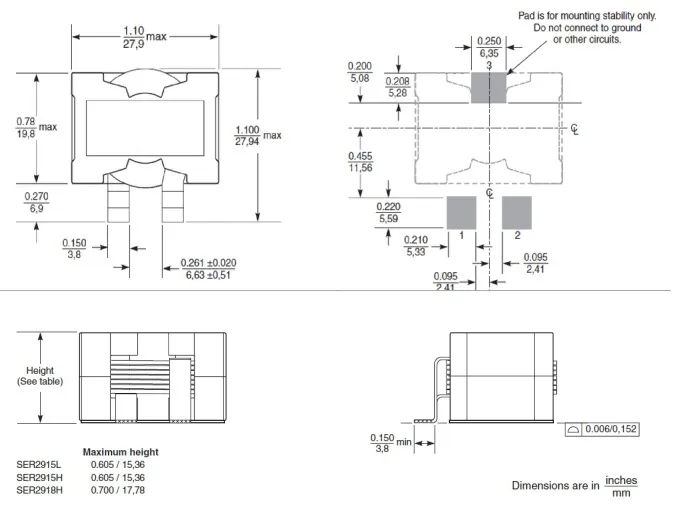

    Inductie DCR SRF Isat(A)   Irms(A)     ºC
    ±10% (mOhms) typ 10% 20%   30%   20 40
    Onderdeelnummer (μH) nom max (MHz) daling daling daling stijging ºCstijging
    IKP2915L-1R5KL 1,5 1,5 1,65 60 100 >100 >100   20 30
    IKP2915H-2R2KL 2,2 1,86 2,05 40 100 >100 >100 20   30
    IKP2915L-2R2KL 2,2 1,5 1,65 50 82,0 84,0   84,8   20 30
    IKP2918H-3R3KL 3,3 2,6 2,86 40 91,0 92,5   93,6   20   28
    IKP2915H-3R3KL 3,3 1,86 2,05 30 62,0 66,9   68,4 20   30
    IKP2915L-3R3KL 3,3 1,5 1,65 40 48,0 54,0   57,0   20 30
    IKP2918H-4R7KL 4,7 2,6 2,86 25 59,0 61,2   62,4 20   28
    IKP2915H-4R7KL 4,7 1,86 2,05 20 42,0 48,0 50,1 20   30
    IKP2915L-4R7KL 4,7 1,5 1,65 30 33,0 36,9   39,0   20   30
    IKP2918H-6R8KL 6,8 2,6 2,86 25 42,0 45,0   45,9 20   28
    IKP2915H-6R8KL 6,8 1,86 2,05 20 30,0 34,5 36,2 20 30
    IKP2915L-6R8KL 6,8 1,5 1,65 25 22,0 26,0   27,8   20   30
    IKP2918H-100KL 10 2,6 2,86 20 28,0 31,2   32,1   20   28
    IKP2915H-100KL 10 1,86 2,05 15 18,0 21,5   23,4 20   30
    IKP2915L-100KL 10 1,5 1,65 20 13,0 16,2   17,6   20   30
    IKP2918H-150KL 15 2,6 2,86 16 18,0 21,2   21,9   20   28
    IKP2915H-150KL 15 1,86 2,05 12 11,5 14,0   15,2 20   30
    IKP2915L-150KL 15 1,5 1,65 15 7,5 9,8 11,0   20 30
    IKP2918H-220KL 22 2,6 2,86 15 12,0 14,0   15,0   20   28
    IKP2915H-220KL 22 1,86 2,05 10 7,0 8,6   9,6   20 30
    IKP2915L-220KL 22 1,5 1,65 10 4,5 6,0 6,8 20 30
    IKP2918H-330KL 22 2,6 2,86 10 7,0 8,7   9,6   20 28
    IKP2915H-330KL 22 1,86 2,05 8 4,0 5,1   5,9   20 30
    IKP2915L-330KL 22 1,5 1,65 7 2,0 2,6 3,3 20 30

    Op maat gemaakte Pq Core High Frequency Transformer met platte draad
    Op maat gemaakte Pq Core High Frequency Transformer met platte draad
    Op maat gemaakte Pq Core High Frequency Transformer met platte draad
    Op maat gemaakte Pq Core High Frequency Transformer met platte draad
    Op maat gemaakte Pq Core High Frequency Transformer met platte draad
    Op maat gemaakte Pq Core High Frequency Transformer met platte draad
