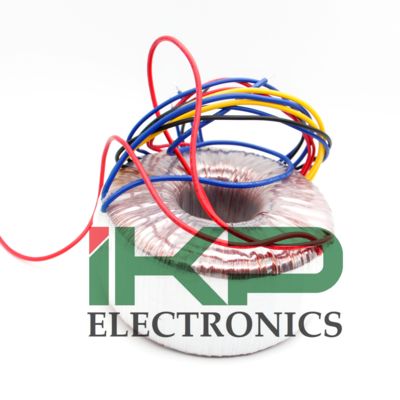

145*65mm Outside Dimension D*H Toroidal Transformer for UPS

145*65mm Outside Dimension D*H Toroidal Transformer for UPS

    • 145*65mm Outside Dimension D*H Toroidal Transformer for UPS
    • 145*65mm Outside Dimension D*H Toroidal Transformer for UPS
    • 145*65mm Outside Dimension D*H Toroidal Transformer for UPS
    • 145*65mm Outside Dimension D*H Toroidal Transformer for UPS
    • 145*65mm Outside Dimension D*H Toroidal Transformer for UPS
    • 145*65mm Outside Dimension D*H Toroidal Transformer for UPS
    • 145*65mm Outside Dimension D*H Toroidal Transformer for UPS

    Productdetails:

    Plaats van herkomst: China
    Merknaam: IKP
    Certificering: CE/UL/REACH/ROHS
    Modelnummer: Toroïdale transformator

    Betalen & Verzenden Algemene voorwaarden:

    Min. bestelaantal: 1000
    Prijs: 3.00-20.00
    Verpakking Details: Verpakking
    Levertijd: 10-15 dagen
    Betalingscondities: L/c, t/t
    Levering vermogen: 100.000/week
    Contact nu
    Gedetailleerde productomschrijving

    Specifications:

    • Power range:500VA to 10000VA

    • Phase: Single

    • Input / Output: Customized

    • Insulation Class: UL class B, F, H, N (optional)

    • Isolation: 4KV (Hi-pot)

    • Easy to change diameter and height of the core

    • Customized specifications are welcome



    Rated Power

    (VA)

    Outside Dimension

    D*H(mm)

    Weight

    (kg)

    Temp. Rise

    (℃)

    		 Approval
    500 145*65 5.5 52 UL/CE/RoHS/CQC
    1000 175*85 8.5 54 UL/CE/RoHS/CQC
    2000 210*90 14.7 55 UL/CE/RoHS/CQC
    2500 210*100 16.7 56 UL/CE/RoHS/CQC
    3000 215*105 17.7 57 UL/CE/RoHS/CQC
    3500 230*115 21.8 58 UL/CE/RoHS/CQC
    5000 290*115 30.0 59 UL/CE/RoHS/CQC
    7000 330*115 35.0 62 UL/CE/RoHS/CQC
    10000 360*115 45.0 65 UL/CE/RoHS/CQC


    ◆We can design and manufacture customized part with specific requirement


    145*65mm Outside Dimension D*H Toroidal Transformer for UPS◆We can design and manufacture customized part with specific requirement◆We can design and manufacture customized part with specific requirement



    145*65mm Outside Dimension D*H Toroidal Transformer for UPS145*65mm Outside Dimension D*H Toroidal Transformer for UPS145*65mm Outside Dimension D*H Toroidal Transformer for UPS145*65mm Outside Dimension D*H Toroidal Transformer for UPS
